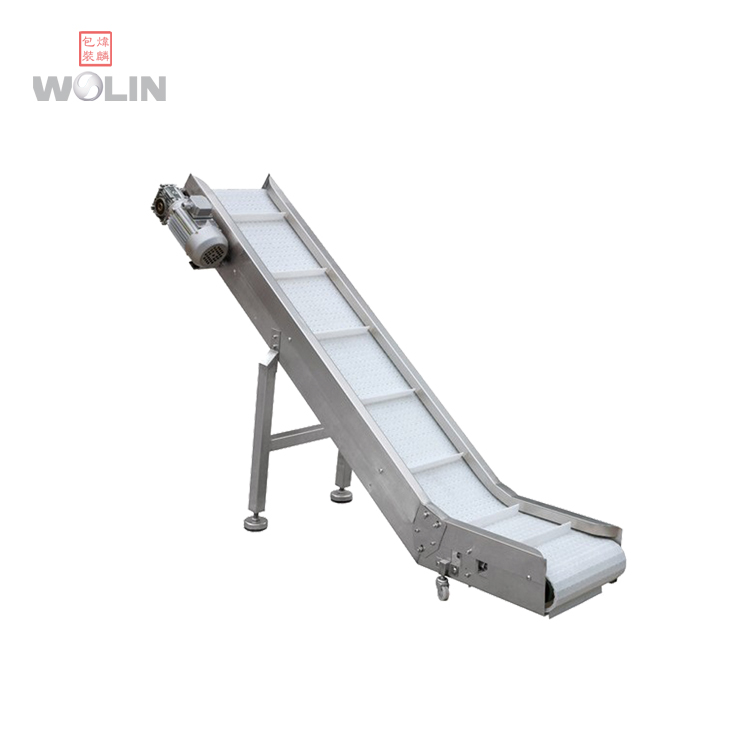

WL-C3 Flexible Output Conveyor
New Version flexible finished products output conveyor, inclined, flat or other type design is available for different packaging line or system, which is food grade belt, customized size is available
MESSAGE US
This conveyor system is for conveying the finished product output or takeaway from the end of the weighing or packaging system.
New generation modular cleat belt design for easy simple installation.
Auto / Manual mode
Output height can be customized
High qualtiy rigid frame construction
Long life relialbe performance
Transport finished package to downstream units.
Auto / Manual mode
Output height can be customized
High qualtiy rigid frame construction
Long life relialbe performance
Transport finished package to downstream units.

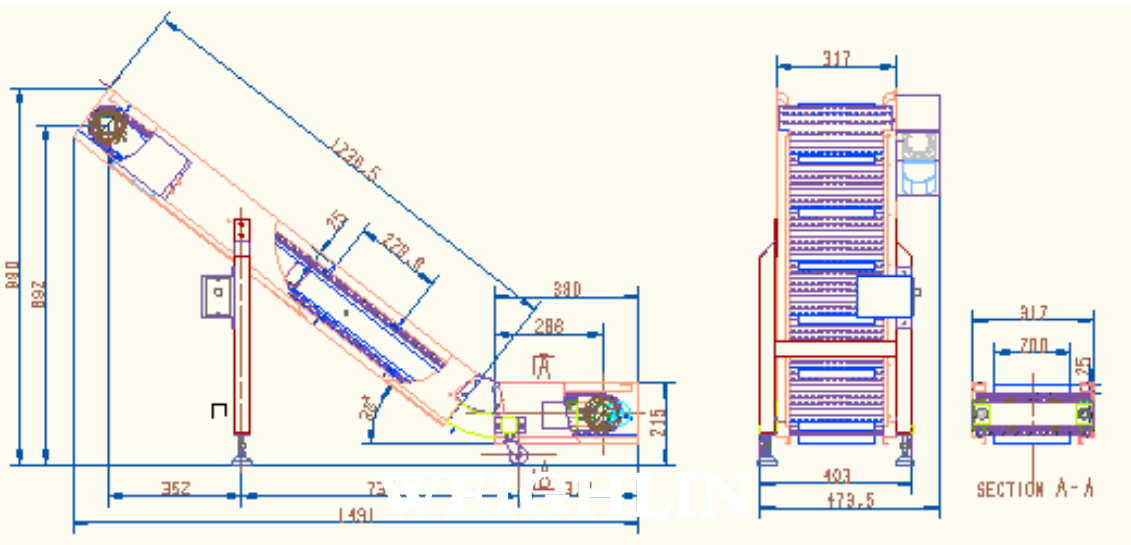

| Model | WL-C3 |
| Name | Output Conveyor |
| Material | Full 304SUS Frame, food grade belt |
| Type | inclined, flat version |
| The lifting height | 0.9~1.5m |
| Conveying capacity | 1-3 cbm/min |
| Control | Motor with adjustable speed |
| Power | 220V, 50/60HZ, 1P, 500W |
| Dimension | 1300(L)*430(W)*890(H)mm |
Transport finished package to downstream units.
The machine can send the packaged finished pouch to the check machines and packaging platform.
The machine can send the packaged finished pouch to the check machines and packaging platform.
