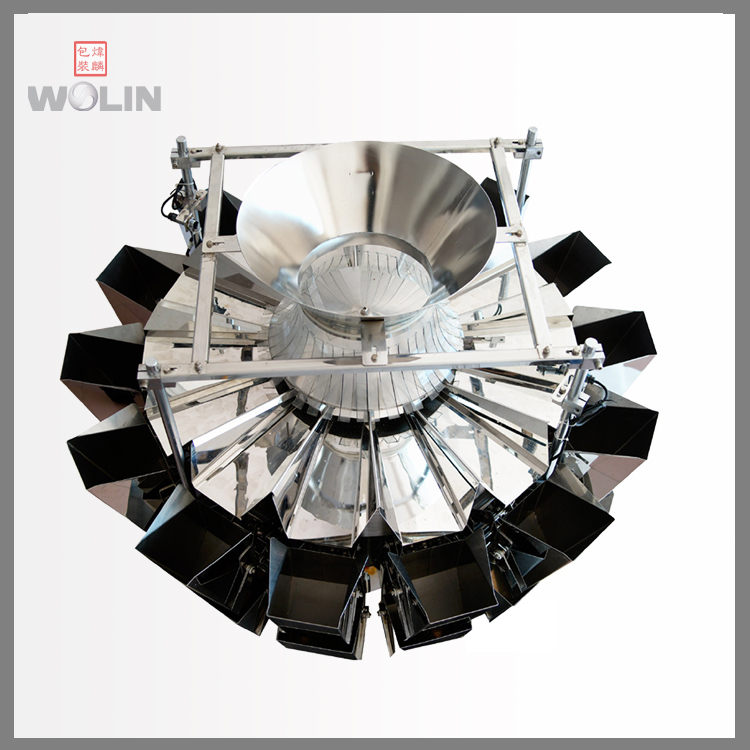

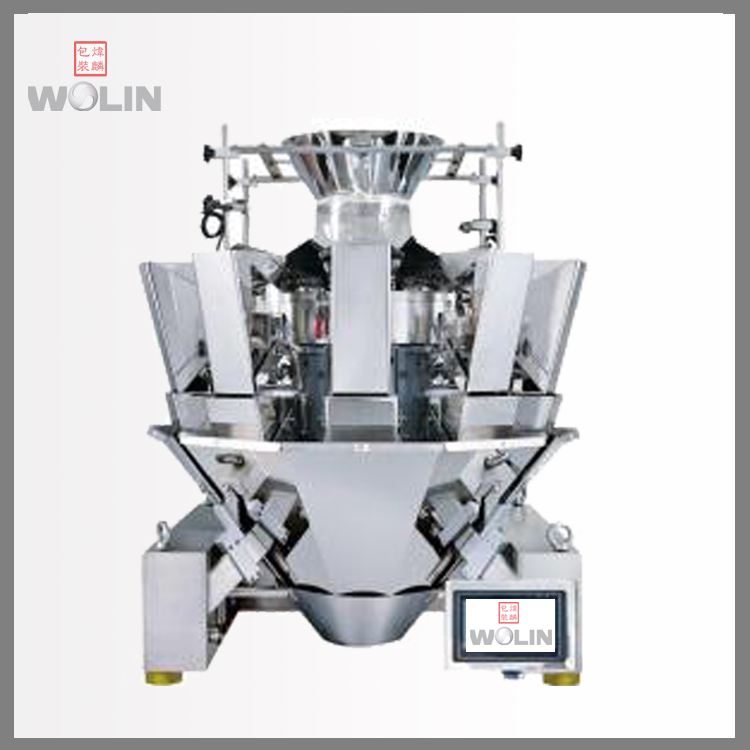

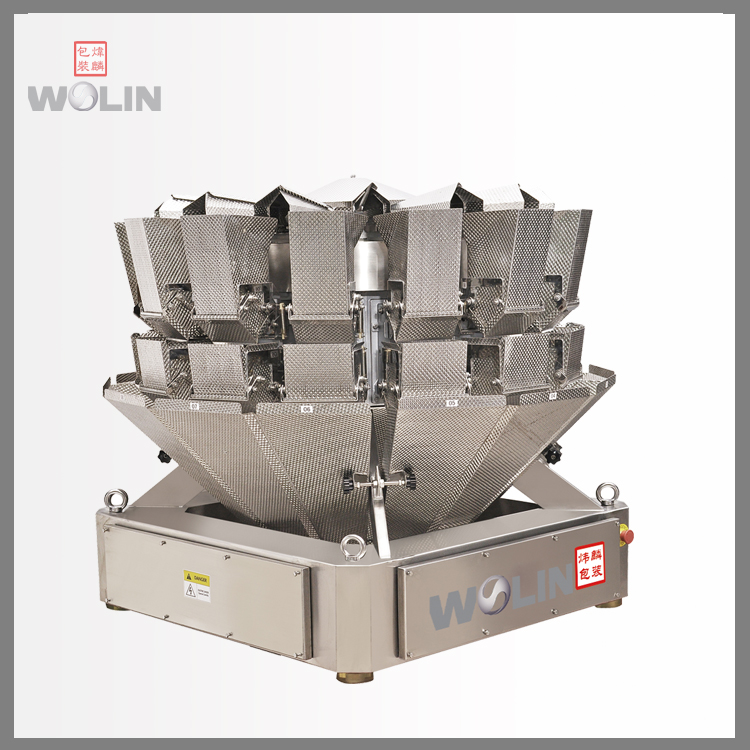

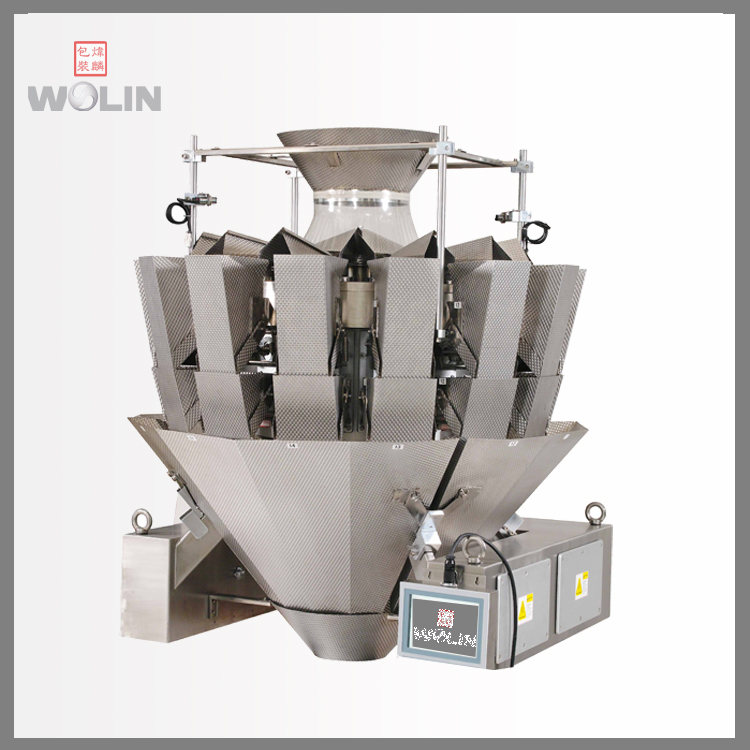

WL-M10/14 Modular Standard 10/14 Head Weigher
Weighlin s new modular multi-head combination weighing filler series is with the feature of hi-speed, hi-accuracy and reliable performance Adopting numbers combination theory, CPU auto calculate and choose the closest target weight combination hoppers to dump to the downstream units, such as manual filling, various packing machine, tray bottle bucket can filling device
MESSAGE US
Weighlin's new modular multi-head combination weighing filler series is with the feature of hi-speed, hi-accuracy and reliable performance. Adopting numbers combination theory, CPU auto calculate and choose the closest target weight combination hoppers to dump to the downstream units, such as manual filling, various packing machine, tray/bottle/bucket/can filling device, also integrated with weight checker, metal detector or X-ray. Widely apply in food or non-food packing industry, such as rice, seeds, nuts, candy, snack food, potatos chips, IQF food, biscuits, bread, fresh vegetable and fruits, hardware or plastic parts, etc. Besides, as for fragile, hard-flowing, long-stick or mixed products, based on years successful experience, we can custom mechanical and program to meet the project requirements, such as dimple plate, timing hopper, inclined feeder pan, piece counting, 1 to 2-3-4-5 points dump or IP65 waterproof design, etc.
- Compact Design for small footprint.
- Free tool installation and dismantle food contacting parts
- Easy operation
- Uniform design standards contribute to better interchangeability for spare parts.
- Rigid frame to improve stability and shorten sample stable time.
- Adopt high precision load cell for reliable performance.
- Program recovery function can reduce improper-operation.
- Auto pause when no enough products ensure running fluency;
- Preset 100 programs and help menu for easy operation;
- Linear amplitude can be auto-adjusted independently;
- Full 304SUS material building for food industry;
| Model | WL-A10 | WL-A14 |
| Head No. | 10 | 14 |
| Weighing Range | 10-800g | 10-800g |
| Accuracy | 0.1-1.5g | 0.1-1.5g |
| Running Speed | 70ppm | 120ppm |
| Hopper Capacity | 1600ml | 1600ml |
| Control Panel | 7" touch screen | 7" touch screen |
| Load cell Capacity | 8kg | 8kg |
| Drive System | Step motor | Step Motor |
| Material Feeding | Feeding conveyor or Manual | conveyor or manual |
| Control System | MCU & Touch screen | MCU & Touch Screen |
| Building Material | SUS304 | SUS304 |
| Options | Feeding conveyor, rotary top cone, | Timing Hopper, dimple plate |
| Power Supply | 110/220V, 50/60hz, 1phase 500W | 110v/220v, 50/60hz, 1phase, 800W |
♦ Function
This new developed multihead packaging machine series of intelligent modular multihead packaging weigher is an automatic high-speed and high-precision weighing solution equipment according to the product’s preset target weight or target pieces.
♦ Benefits:
- Save material cost (High precision)
- Save labor cost (Full automatic)
- Large-scale production (High speed)
- Facilitate the management (High efficiency & Low maintenance)
♦ Options:
- 2.5L Double open flap hopper design
- Rotary top cone
- Dimple or Teflone plate
- Timing hopper/collecting hopper
- Infeed hopper
- Support stand/platform
- Manual Filling Chute
