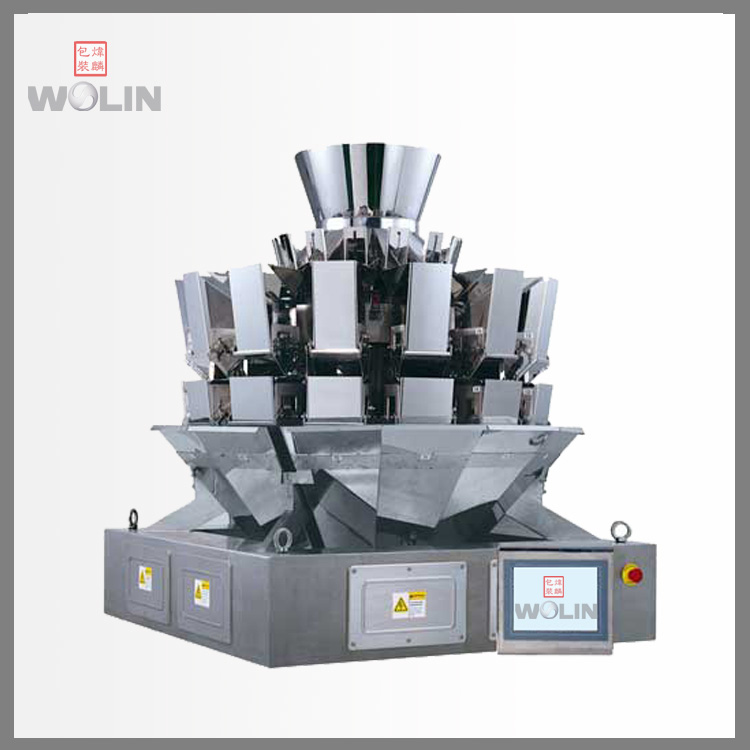

10H 14H Weigher for Rice, Sugar, Seeds
Equiped with multiple mouth dispense top cone for easy flowing material feeding with thickness adjustment, leak-proof bucket design avoiding material leaking when running, free-tool dismantle and install for easy clean and maintenance, flexible usage in rice, white sugar and seed weighing project
MESSAGE US
Equiped with multiple mouth dispense top cone for easy flowing material feeding with thickness adjustment, leak-proof bucket design avoiding material leaking when running, free-tool dismantle and install for easy clean and maintenance, flexible usage in rice, white sugar and seed weighing project.\
- Adopt high precision and high accurate load cell;
- Program recovery function can reduce operation failures；
- No products auto pause function can improve weighing stability;
- 100 programs capacity can meet various weighing requirements；
- User-friendly help menu contributes to easy operation;
- Linear amplitude can be adjusted independently;
- Multiple languages control;
- Multi-mouth feeder can dispense products into each linear feeder pan effectively.
- Specially designed U-shaped linear feeder pans can avoid leaking problem.
- Mold making process and uniform design standards contribute to better interchangeability for spare parts.
- Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy.
- Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.
|
Model |
WL-A10-R |
WL-A14-R |
|
Heads |
10 |
14 |
|
Weighing Range |
20-1000g |
20-1500g |
|
Accuracy |
0.1-1.5g |
0.1-1.5g |
|
Max Speed |
65P/M |
120P/M |
|
Hopper Volume |
1.6L/2.5L |
|
|
Control Panel |
7”Touch Screen |
|
|
Driving System |
Step Motor |
|
|
Power Requirement |
220V/1000V/ 50/60Hz /10A |
220V/1500W/ 50/60Hz /12A |
|
Packing Dimension(mm) |
1620(L)X1100(W)X1110(H) |
1700(L)X1110(W)X1265(H) |
|
Gross Weight |
380kg |
490kg |
supporting stand
