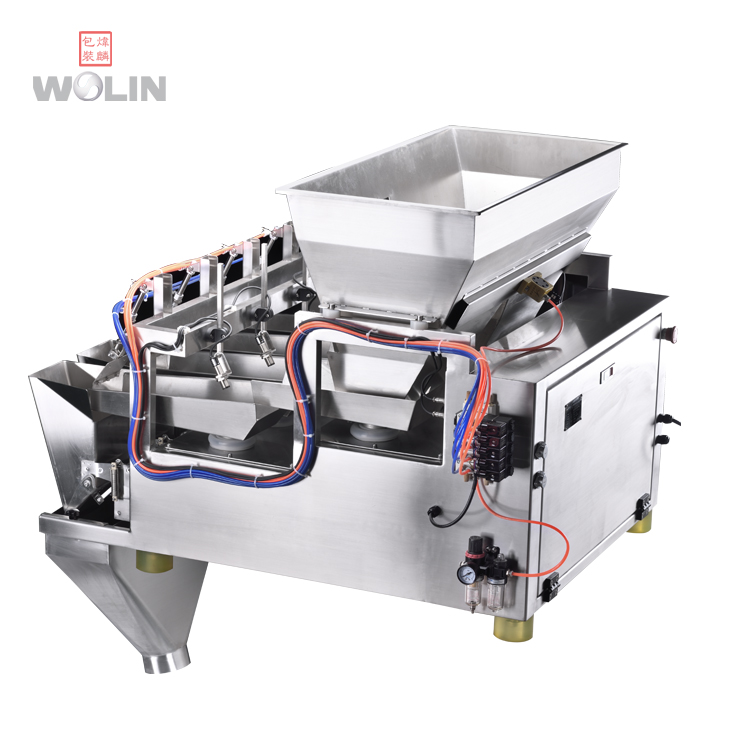

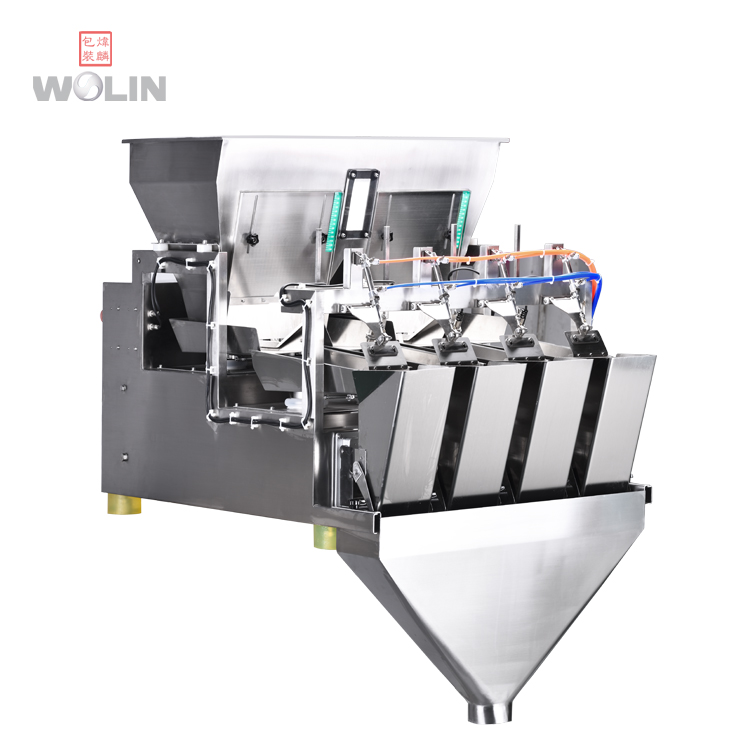

WL-DP2H30 Duplex 2Head 4head Weigher for Big Granules
Weighlin new released duplex 2head weigher is with double level vibrator for feeding material more evenly and widely apply for big size more than 2cm products, such as chocolate coins, potato chips, banana chips, dry fruits, oninons, etc, cross edge design to solve jamming or blocking problem on the loading bunker outlet
MESSAGE US
Weighlin new released duplex 2head weigher is with double level vibrator for feeding material more evenly and widely apply for big size more than 2cm products, such as chocolate coins, potato chips, banana chips, dry fruits, oninons, etc, cross edge design to solve jamming or blocking problem on the loading bunker outlet
- Full 304SUS building material;
- Duplex vibrator level for more wide application
- Tool-free install, dismantle and clean;
- Easy operation and low maintenance;
- Coarse and fine feeding material control;
- Different administrator levels management;
- PLC + Touch screen control system;
- Free parameter adjusting during running;
- Self R&D interchangeable main PCB board control;
- Self-study run mode for easy operation
| Model | WL-DP2H30 | WL-DP4H3L |
| Weight Filling Range | 10-2000g | 10-2000G |
| Weighing Accuracy | 0.2-2g | 0.2-2G |
| Max weighing speed | 5-30 PPM | 10-40ppm |
| hopper Capacity | 3 L | 3L |
| Control system | MCU+TOUCH SCREEN | MCU+Touch Screen |
| Preset Programs | 10 | 10 |
| Max. Mix-Products | 2 | 4 |
| Operation Panel | 7 inch touch screen | 7" touch screen |
| Voltage/Power/Frequency/Rating Current | AC220V ±10% 50Hz(60Hz) | 220v, 50/60hz, 1p |
| Packing Dimension (mm) | 1516(L)*718(W)*951(H) | 1800*720*951 |
| Packing Weight | 200KG | 400kg |
OPTIONS AVAILABLE
- In-feed bulk material conveyor
- Support gantry/stand
- Various size dump chute outlet
- Dimple contacting parts
- 316SUS food contacting parts
