Highly Automated Doypack Machine with Weight Feedback (WL-MDP220)
What is Doypack Machine? This highly automated preformed pouch doypack machine is engineered for efficiently packing powder, liquid and granular products, and it accommodates a range of pouch types It automatically pick up - open - fill - seal - date print (Option) - output, it enhances your packaging processes through speed, hygiene and safety
MESSAGE US

Located in Zhongshan, service for global! Found in 2011, through years' efforts and development, Welin have owned more modern working facility and obtained know-how and experience for various automatic packaging machinery R&D and full turnkey feeding weighing packaging and inspecting line. We're becoming a high-tech enterpreture integrated with R&D, manufacturing, marketing and service backup, main products are included auto weight filler, VFFS, mini doypack machine, weight checking sorting and inspecting, etc and whole turnkey solution, which is widely used in snack food, puffy food, fresh frozen food, agriculture, medical, chemical and hardware, etc field.



Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.



Pouch-making Type

Zip-lock Pouch / Stand-up Pouch / Zipper Pouch / 3-sided Pouch / Gusset Pouch / Spout Pouch / Reseal-able Premade Pouch / Flat Bottom Premade Pouch / Top Zip Pouch / Heat Seal Pouch / Kraft Window-open Paper Pouch. etc

APPLICATION

Typically weighing and packing granules, nuts and pulses, powder, fresh vegetable, fruit salad, snack food, tea and coffee, frozen food, confectionery, pets foods, bird foods, dog foods, cat foods, beans, grain, rice, sesame, sugar, salt, seeds, food additives, granola, muesli, fertilizer, berries, tomato chips, chocolate nuts, fodder, tablet, pepper etc.

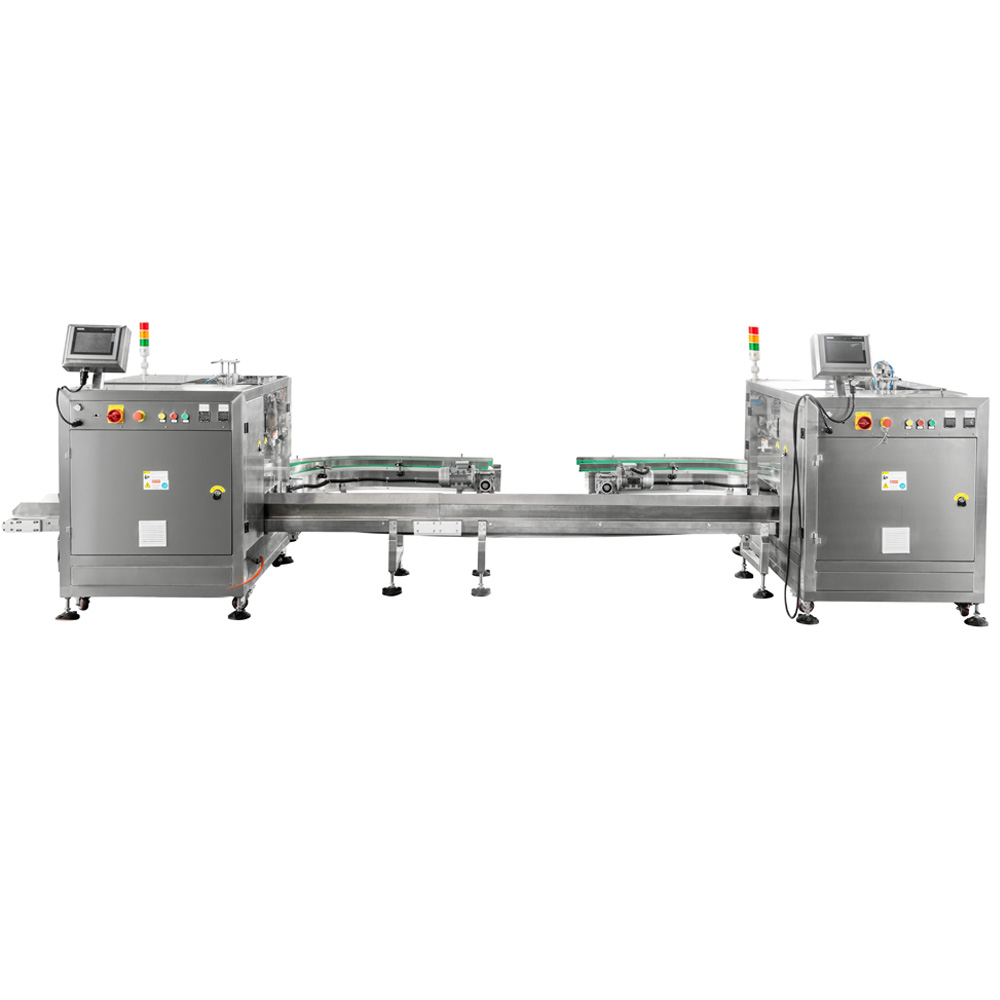

1. Automated Doypack Machine - Automatically adjust holder sizes - pickup - open - fill - seal



2. Automated Doypack Machine - Automatically adjust holder sizes - pickup - open - fill - seal



3. Horizontal Outpput Conveyor - Moving out the finished packages



4. Curved Pouch Feeding Conveyor - Sending empty pouches to Doypack Machine



5. Curved Pouch Feeding Conveyor - Sending empty pouches to Doypack Machine

  • Innovative pouch clamping system
  • With Weight Feedback Function
  • Auto adjust holder for different type pouches
  • Tool-less quick to remove and clean
  •  Food-grade SUS304 contact surfaces
  •  Compact footprint and low mainteance
  • Automatic filling machine for premade doypack pouches
  •  Automatic operation control, easy to adjust and operate
  •  PLC controlled pouch loading - open - fill - seal - output

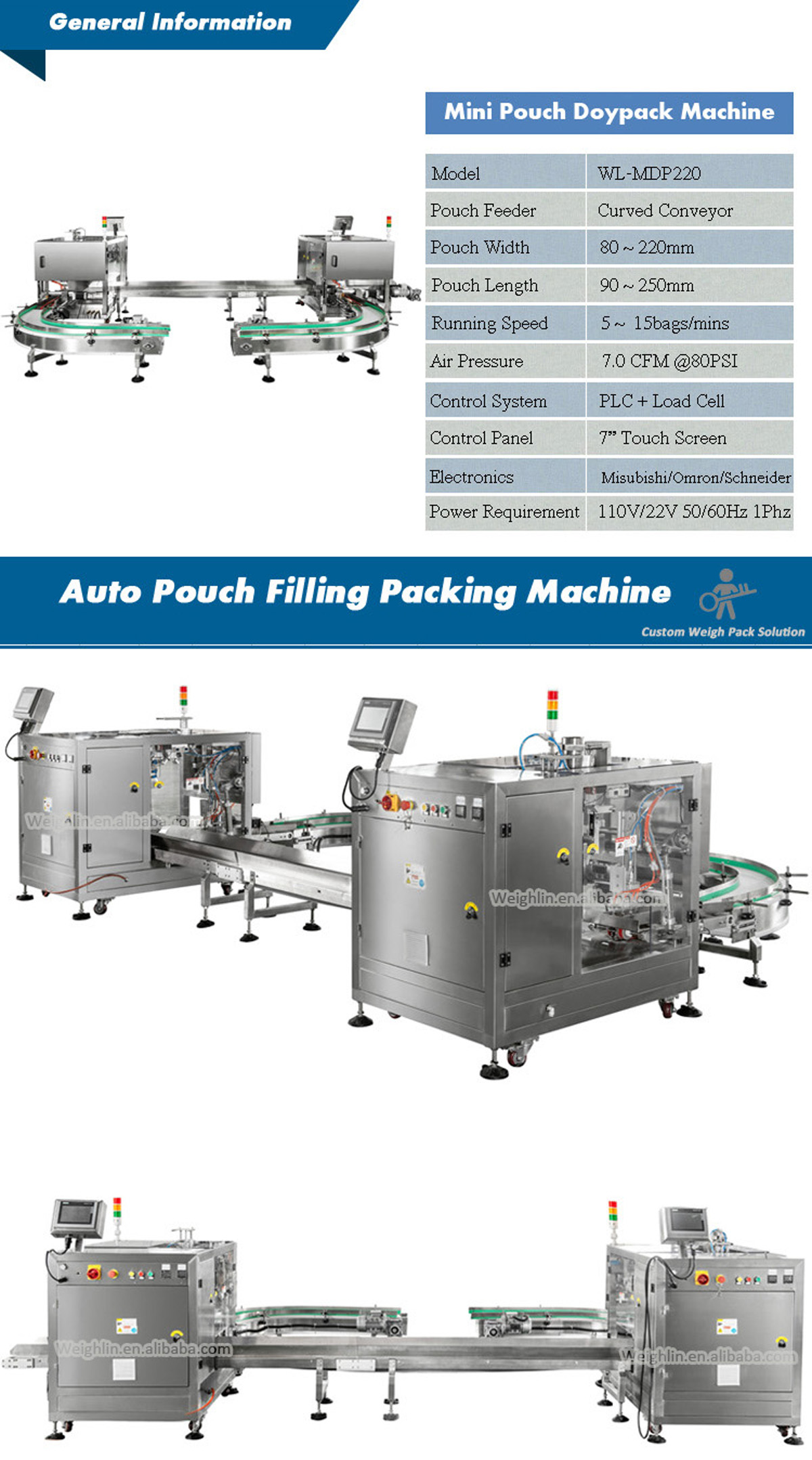

SPECIFICATIONS:

Model WL-MDD220
Premade Pouch Type standup premade pouch, reseal-able premade pouch, flat bottom premade pouch, 3-side seal pouch, zipper pouch, zip-lock pouch, top zip pouch, heat seal pouch, kraft window-open paper pouch
Premade Pouch Size W80 ~ 220mm X L90 ~ 250mm
Packing Speed 5 ~ 15bags/min
Power Supply 220V/50Hz or 60Hz, Single Phase 1KW
Air Pressure 7.0CFM@80 PSI
Operation Panel 7.0" User's touch screen
Electronic Mitsubishi PLC / Omron Temperature Controller / Omron Power Switch / Schneider Breaker
Pneumatic Pneumatics component Airtac from Taiwan;
PIAB Vacuum generator/SMC Vacuum Fliter
Options Auto Zipper open device, SMC Pneumatic Parts, Product Settler, Gasflush and vacuum function, Take Away Conveyors, Filling devices, Ribbon Stamp Printer
