Metal Detector
Belt Conveyor Metal Detector is suitable for metal contaminants detection in various industries, such like Aquatic products, meat & poultry, salted products, pastry, nuts, vegetables, chemical raw materials, pharmacy, cosmetics, toys, etc
MESSAGE US

Located in Zhongshan, service for global! Found in 2011, through years' efforts and development, Welin have owned more modern working facility and obtained know-how and experience for various automatic packaging machinery R&D and full turnkey feeding weighing packaging and inspecting line. We're becoming a high-tech enterpreture integrated with R&D, manufacturing, marketing and service backup, main products are included auto weight filler, VFFS, mini doypack machine, weight checking sorting and inspecting, etc and whole turnkey solution, which is widely used in snack food, puffy food, fresh frozen food, agriculture, medical, chemical and hardware, etc field.



Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.


APPLICATION:


Suitable for metal contaminants detection in various industries, such like aquatic products, meat and poultry, salted products, pastry, nuts, vegetables, chemical raw materials, pharmacy, cosmetics, toys. Detecting all metal contaminants in packaged and non-packaged food, including ferrous metal (Fe), non-ferrous metals(copper, aluminum etc) and stainless steel.


Salient Functions:

  • Phase tracking function which can maintain the stable high-sensitive detection ability.
  • Product tracking function which can make adjustment and compensation according to the changes of the product effect automatically.
  • Auto-balanced calibration function which ensures the lifespan of the machine.



User Friendly Functions:

  • Stainless steel mirror surface, easy design.
  • Up to 52 products can be restored in product database.
  • Available USB and Ethernet interfaces



Hardware Structure Optimization



  • Applying high functional FPGA plan with single chip machine

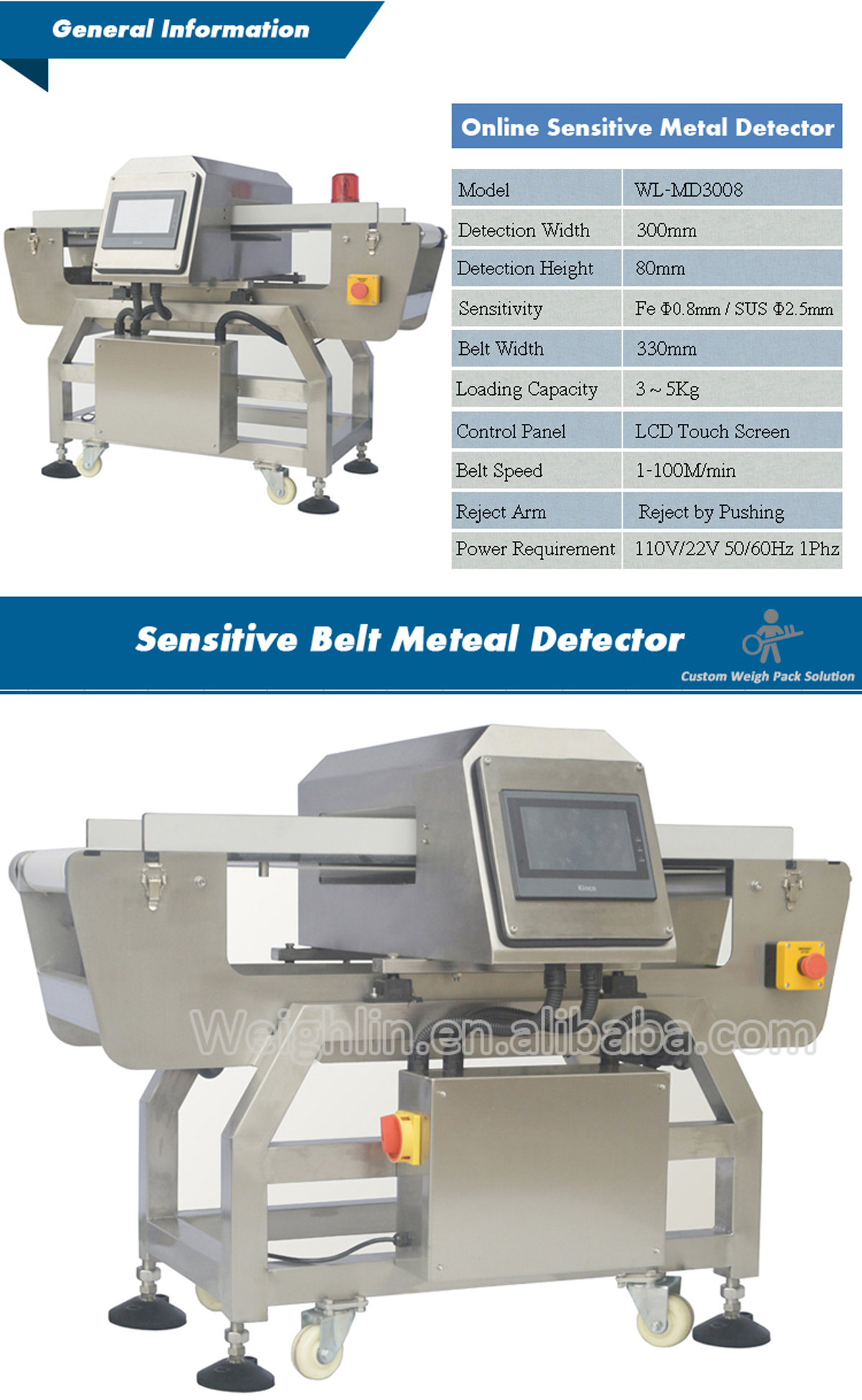

SPECIFICATIONS:





 Model

 WL-MD3008
 Detection Width  300mm
 Detection Length  80mm
 Sensitivity  Fe Φ 0.8mm / Sus Φ 2.5mm
 Belt Width  300mm
 Loading Capacity  3 ~ 5Kg
 Belt Speed  1-100m/min (Optional)
 Belt Conveyor  Food grade PVC (Optional PU and Chaine Conveyor)
 Control Panel  LCD Liquid Crystal Display (Optional FDM touch screen)
 Operation Mode  Button Input (Optiaonal touch input)
 Product Storage  52
 Packing Form  Standard Plastic or Carboard, Metal Film (Aluminum) and Bulk
 Protection  IP66 Dust and Water Proof
 Body Material  SUS304
 Power Supply  AC220V
