Automatically Countable Packaging Machine (WL-S32)

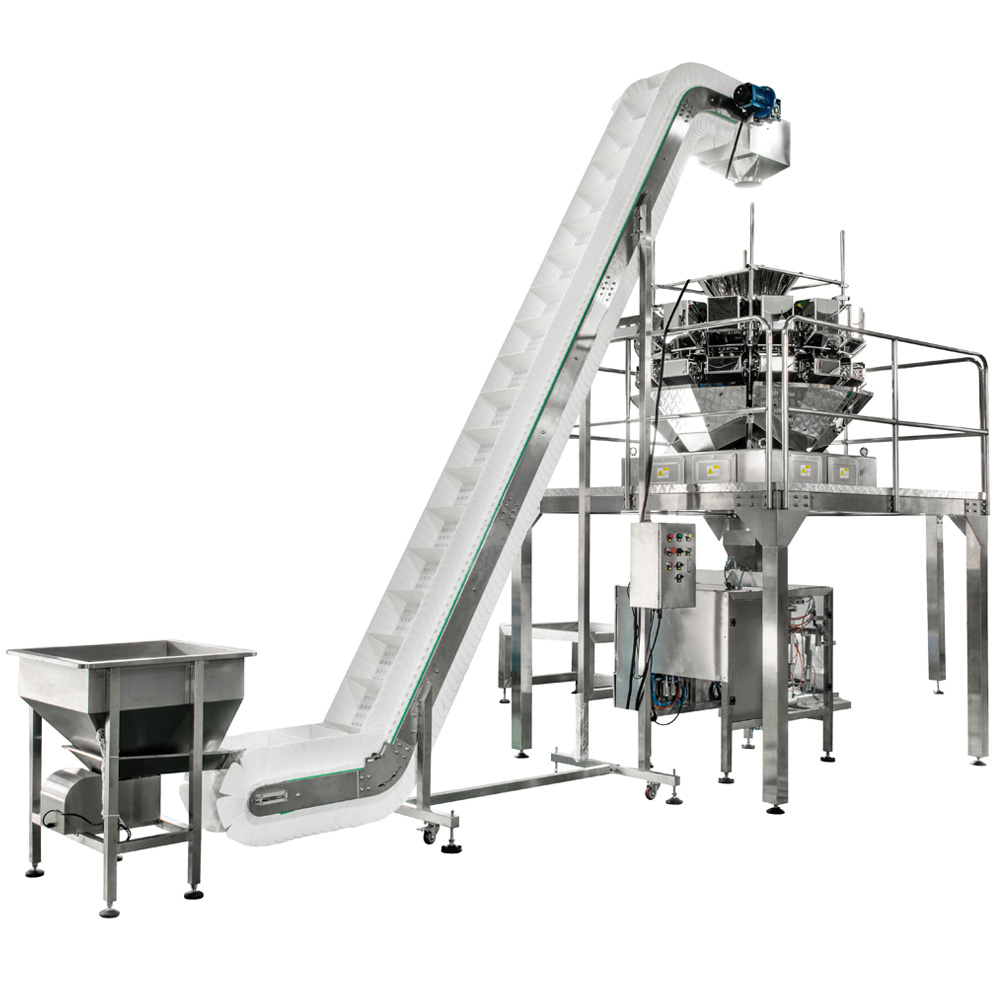

A perfect turnkey complete packaging system which integrates Inclined Belt Elevator - 14-Head Combination Weigher with Counting Function - Doypack Machine, from raw materials discharge to packaging finished products(feeding raw material - feeding - Counting - filling - packing - sealing - Completing in a smooth fast packing line
MESSAGE US

Located in Zhongshan, service for global! Found in 2011, through years' efforts and development, Welin have owned more modern working facility and obtained know-how and experience for various automatic packaging machinery R&D and full turnkey feeding weighing packaging and inspecting line. We're becoming a high-tech enterpreture integrated with R&D, manufacturing, marketing and service backup, main products are included auto weight filler, VFFS, mini doypack machine, weight checking sorting and inspecting, etc and whole turnkey solution, which is widely used in snack food, puffy food, fresh frozen food, agriculture, medical, chemical and hardware, etc field.



Established in 2011, WEIGHLIN dedicated in food weighing packaging machines, included high speed high precision multihead weighers, economical practical linear weighers, dynamic weight checking and grading, performed pouches packing machine, high quality accessories such as platform and conveyors, also full feeding weighing packaging inspecting line, etc and other related customized packaging machines. Quality packaging solution is from Weighlin years of focus and understanding of the packaging industry. WEIGHLIN strives for perfection in the pursuit of quality, while taking into account easy to operate, easy to disassemble, easy to clean, small investment, stable performance, so that the packaging carry, deliver and create value.


Bag-making Type

Zip-lock Pouch / Stand-up Pouch / 3-sided Pouch / 4-sided Pouch / Gusset / Spout / Flat Bottom Pouch / Zipper Pouch / Top Zip Pouch etc

APPLICATION

Be 100% accurate counting big sizes product in a package, such like frozen bread / ped food / teabag / bottles / fresh potato. etc.

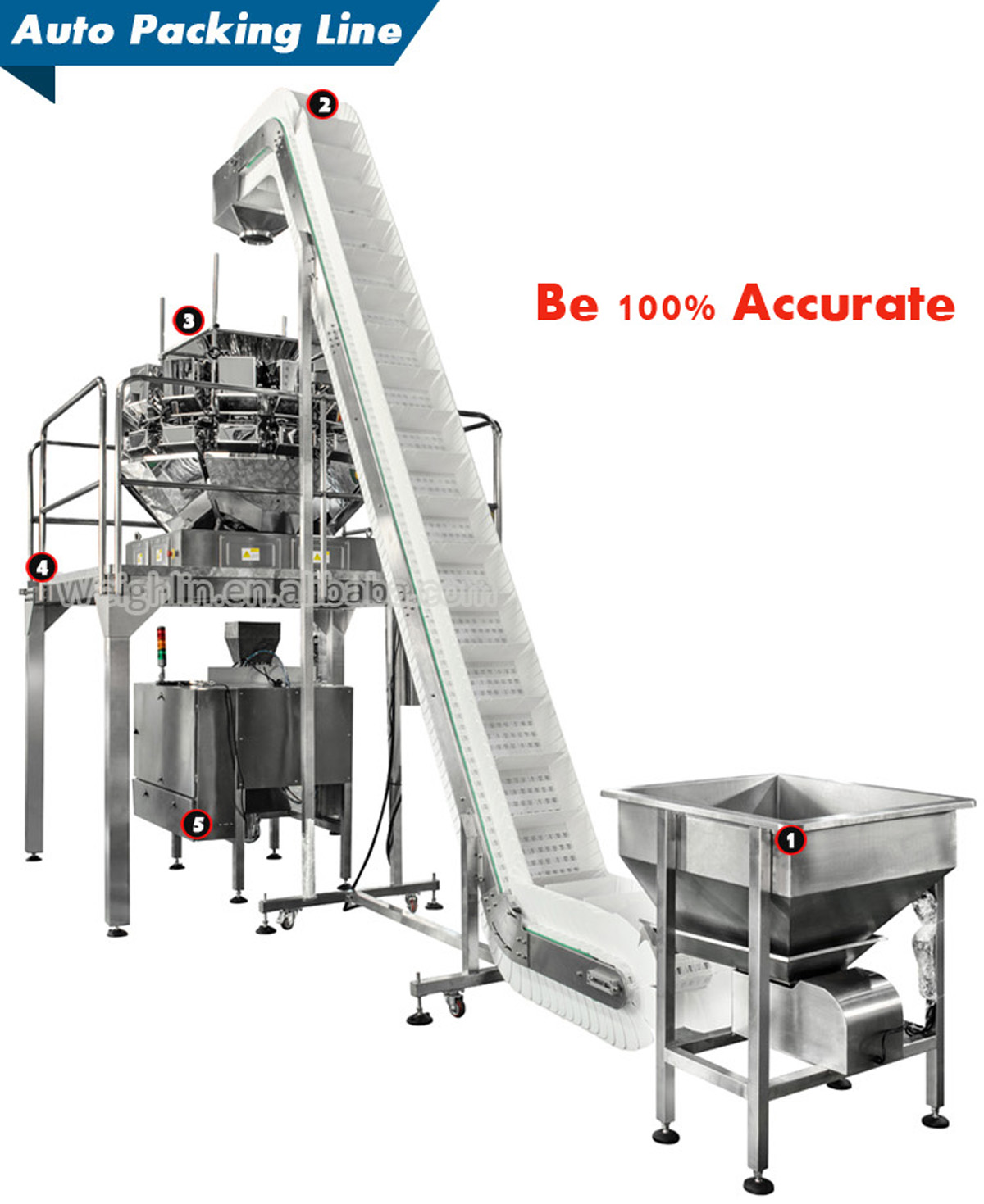

1. Vibrated Feeder  - Evenly feeding matierals to the belt conveyor by vibration



2. Inclined Belt Conveyor - Lifting materials to the 14-head Combination Filler



3. 14-head Combination Weigher - Automatically weighing / counting as preset target weight / number



4. Working Platform - Used to support the 14-head Combination and daily maintenance



5. Doypack Machine - Automatically pickup pouches - open - fill - seal - output

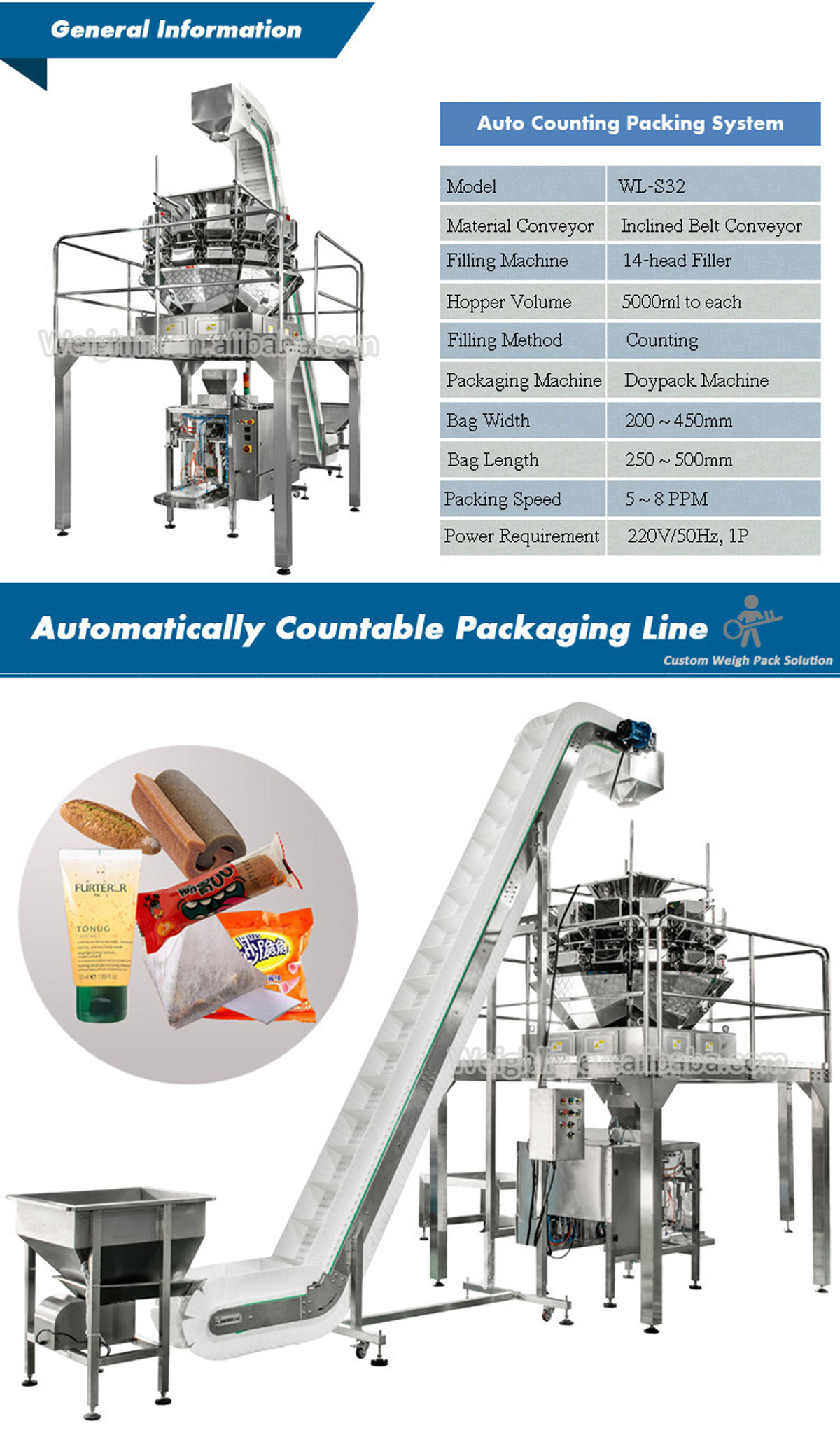

SPECIFICATIONS:





 Model  WL-S32 (Auto Counting Packaging Line)
 Heads Number  14-head (Optional)
 Hopper Capacity  5000ml to each
 Filling Accuracy  100%
 Packaging Machine  Premade Pouches Doypack Machine
 Pouch Sizes

 W 200 ~ 450mm / L 250 ~ 500mm

 Driving System  Step Motor
 Material Feeding  Inclined Belt Conveyor
 Control System  MCU + Modular PCB board (PLC)
 Building Materials  SUS304 stainless steel
 Power Requirement 220V, 50/60Hz, 1Phase
